supercomposite

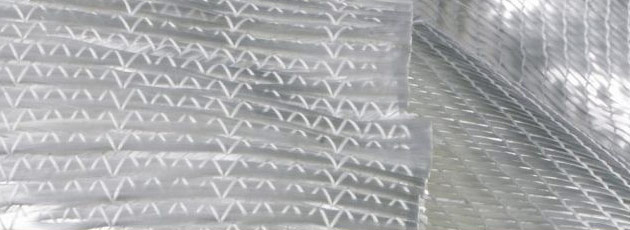

Muitiaxial fabrics is non-crimp,multi-axis and multi-layered reinforcements, layer count, orientation, weight and fiber content of the layers vary based on product line and application, the layers are stitched via polyester yarn, fabrics can be produced using multiple axis(0º , 90º ,+45º ,-45º ), or combined with chopped mat and multiple layers of veil and/or non-woven materials. The typical application of this kind of products are wind energy, marine/ship building, recreation/leisure products, automotive, aerospace & defense etc.

Product Code	Specification( Layer Weight g/m2)						Total Weight (g/m2)
	0º	90º	+45º	-45º,	Stitch Yarn	Mat
QX600	142	142	150	150	10	-	594
QX800	213	213	199	199	10	-	824
QX1000	284	284	214	214	10	-	1008
QX1200	284	284	301	301	10	-	1180
QX1200 FLAT	284	284	301	301	10	-	1180
QXM1200/225	284	284	301	301	10	225	1405
QXM1350/225	284	284	401	401	10	225	1605
QXM1800/225	567	567	301	301	10	225	1971

Properties

• Increased strength,reduced product weight and better surface finish.
• Orientated unidirectional layers are structurally more efficient.
• Quicker to wet-out than woven fabrics.
• Available in very heavy weights allowing faster deposition rates.
• Binderless CSM can be added to further cut down on lay-up time and increase speed of wet-out.

Application

Shipbuilding,Power engineering,Sports and leisure time,Automotive industry, Airplane construction,Machine building, Plant engineering, Aerospace industry, Medical sector
