supercomposite

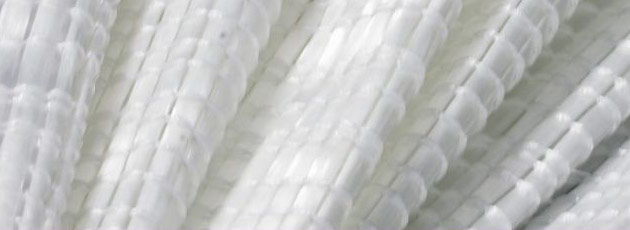

Multiaxial fabrics is non-crimp, multi-axis and multi-layered reinforcements, layer count, orientation, weight and fiber content of the layers vary based on product line and application. the layers are stitched via polyester yarn, fabrics can be produced using multiple axis(0º , 90º , +45º , -45º ), or combined with chopped mat and multiple layers of veil and/or non-woven materials. The typical application of this kind of products are wind energy, marine/ship building, recreation/leisure products, automotive, aerospace & defense etc.

Product Code	Specification( Layer Weight g/m2)						Total Weight (g/m2)
	0º	90º	+45º	-45º,	Stitch Yarn	Mat
T300	-	300	-	-	10	-	310
TM300/300	-	300	-	-	10	300	610
T450	-	450	-	-	10	-	460
T500	-	504	-	-	10	-	514
L400	413	54	-	-	12	50	529
L600	606	54	-	-	12	50	722
L800	799	54	-	-	12	50	915
L1200	1213	54	-	-	12	50	1329

Properties

• Increased strength, reduced product weight and better surface finish.
• Orientated unidirectional layers are structurally more efficient .
• Quicker to wet-out than woven fabrics.
• Available in very heavy weights allowing faster deposition rates.
• Binderless CSM can be added to further cut down on lay-up time and increase speed of wet-out.

Application

Shipbuilding,Power engineering,Sports and leisure time,Automotive industry, Airplane construction,Machine building, Plant engineering, Aerospace industry, Medical sector
