supercomposite

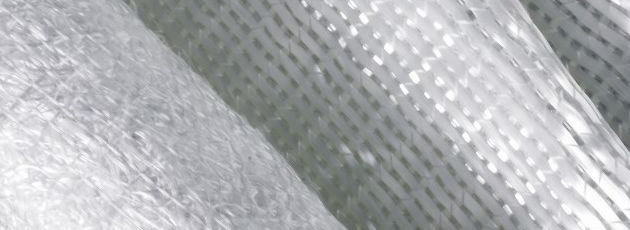

Multiaxial fabrics is non-crimp, multi-axis and multi-layered reinforcements, layer count, orientation, weight and fiber content of the layers vary based on product line and application. the layers are stitched via polyester yarn, fabrics can be produced using multiple axis (0º , 90º ,+45º ,-45º ), or combined with chopped mat and multiple layers of veil and/or non-woven materials. The typical application of this kind of products are wind energy, marine/ship building, recreation/leisure products, automotive, aerospace & defense etc.

Product Code	Specification( Layer Weight g/m2)						Total Weight (g/m2)
	0º	90º	+45º	-45º,	Stitch Yarn	Mat
LT600	331	300	-	-	12	-	643
LTM600/225	331	300	-	-	12	225	868
LTM600/450	331	300	-	-	12	450	1093
LT800	413	402	-	-	12	-	827
LTM800/450	413	402	-	-	12	450	1277
LT1000	606	402	-	-	12	-	1020
LT1200	606	660	-	-	12	-	1218
LTM1200/300	606	660	-	-	12	300	1518

Properties

• Increased strength,reduced product weight and better surface finish.
• Orientated unidirectional layers are structurally more efficient.
• Quicker to wet-out than woven fabrics.
• Available in very heavy weights allowing faster deposition rates.
• Binderless CSM can be added to further cut down on lay-uptime and increase speed of wet-out.

Application

Shipbuilding,Power engineering,Sports and leisure time,Automotive industry, Airplane construction,Machine building, Plant engineering, Aerospace industry, Medical sector
